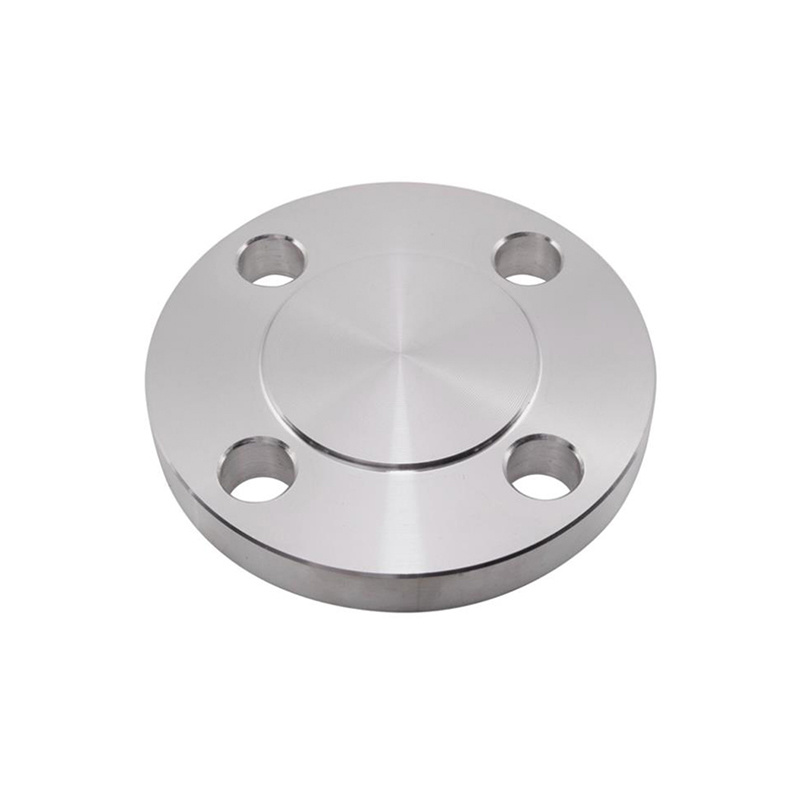

| 제품 | 플랜지 | ||||||
| 표준 | EN 1092-1, BS 4504, BS10, ASME B16.5, ASME B16.47, ASME B16.48, MSS SP-44, DIN 86044, AWWAC207, HG/T 20592~20635, SH/T 3406, GB/T 9124, GB/T 9115, GB/T 13402 | ||||||
| 재료 | 재료 등급 | 재료 기준 |
치수 | ||||
| A105、A105N | ASTM A105 | DN15(1/2")~DN3600(144") | |||||
| F304, F304L, F304H, F316, F316L, F316H, F316N, F321, F321H, F347, F347H, F310, F310H, F317, F317L, F44, F904L, F51, F53, F55, F60, F22, F11, F5, F9 |
ASTM A182 | DN15(1/2")~DN3600(144") | |||||
| 1학년 | ASTM A181 | DN15(1/2")~DN3600(144") | |||||
| LF1、LF2、LF3、LF4、LF5、LF6 | ASTM A350 | DN15(1/2")~DN3600(144") | |||||
| F42, F46, F48, F50, F51, F52, F53, F56, F60, F65, F70 | ASTM A694 | DN15(1/2")~DN3600(144") | |||||
| ST37.2 | DIN 17100 | DN15(1/2")~DN3600(144") | |||||
| C22.8 | DIN 17243 | DN15(1/2")~DN3600(144") | |||||
| P245GH, P250GH, P265GH, P280GH, 16Mo3, 14CrMo4-5 | EN 10222-2 | DN15(1/2")~DN3600(144") | |||||
| X6CrNiTi18-10、X5CrNiMo17-12-2 | EN 10222-5 | DN15(1/2")~DN3600(144") | |||||
| P285NH、P285QH | EN 10222-4 | DN15(1/2")~DN3600(144") | |||||
| L7C、L1、B8、B8LN | ASTM A320 | DN15(1/2")~DN3600(144") | |||||
| 1학년, 2학년, 3학년, 4학년 | ASTM A266 | DN15(1/2")~DN3600(144") | |||||
| Q245R、Q345R、12Cr1MoVR、 12Cr2Mo1R15CrMoR、14Cr1MoR、Q370R |
GB 713 | PN2.5-PN100/DN10～DN2000 150등급 ～60C등급 |
|||||
| Q235A、Q235B、20# | GB/T 700、 GB/T711 |
PN2.5-PN100/DN10~DN2000 150반 ~600반 |
|||||
| 16개월 DR、09개월 NIDR | GB/T 3531 | PN2.5-PN100/DN10~DN2000 150반 ~600반 |
|||||
| 06Cr19Ni10、022Cr19Ni10、06Cr18Ni11Ti、 06Cr17Ni12Mo2、022Cr17Ni12Mo2、 06Cr18Ni11Nb |
GB/T 4237 | PN2.5-PN100/DN10~DN2000 150반 ~ 600반 |
|||||
| 20、16Mn、15CrMo、12Cr1MoV、12Cr2Mo1、 20MnMo、12Cr5Mo、10Cr9Mo1VNbN |
NB/T 47008 | PN2.5-PN160/DN10～DN1000 150급(PN20)~2500급 (PN420) |
|||||
| 16MnD, 20MnMoD, 09MnNiD, 08MnNiCrMoVD | NB/T 47009 | ||||||
| 06Cr19Ni10/S30408、022Cr19Ni10/S30403 06Cr17Ni12Mo2/S31608、 022Cr17Ni12Mo2/S31603 06Cr18Ni11Ti/S32168、07Cr18Ni11Nb/S34779 |
NB/T 47010 | ||||||
| F52, F60, F65, F70, F42, F46, F48, F50, F51, F52, F53, F56, F60, F65, F70 | ASTM A694 | DN15(1/2")~DN3600(144") | |||||
| UNS N08825、UNS N06625、C276、 MONEL400/500, UNS N02200, UNS N02201 |
ASTM B564 | DN15(1/2")~DN3600(144") | |||||
| UNS C70600、UNS C71500 | ASTM B151 | DN15(1/2")~DN3600(144") | |||||
| F-1등급, F-2등급, F-3등급, F-5등급, F-7등급, F-9등급, F-11등급, F-12등급 | ASTM B381 | DN15(1/2")~DN3600(144") | |||||
